BM20200 Commercial brake tester

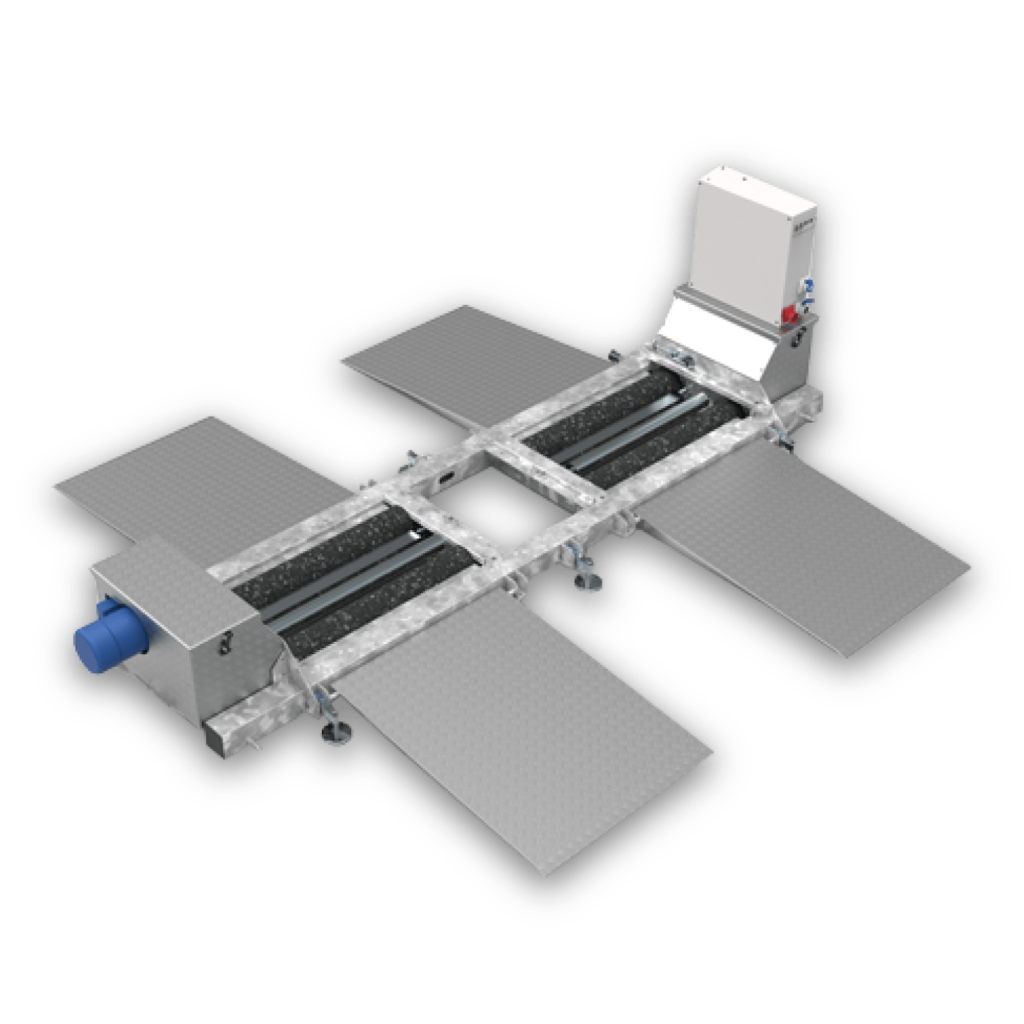

The BM20200 Mobile Roller Brake Tester is an on-ground Brake tester for vehicles with axle load up to 20,000 kg.
Description
Installation
Technical Data
Applications
Description
- Easy to use with BM software:
- Integrated guide.
- Advanced graphics printout.
- Diagnostic printout with or without connection to PC/Notebook.
- Calculation of test results according to the requirements of many national authorities.
- BM FlexCheck software:
- Advanced data collection, storing and presentation of test results.
- Data capture from a complete inspection lane.
- PDA/smartphone/tablet solution, which allows the operator to control and monitor the test results directly on a handheld unit. BM FlexCheck on smartphone and tablet
- Reversible (Test of 4×4, 6×6 and 8×6 driven vehicles.)
- Bi-Directional
- Automatic axle weighing and vehicle total weight.
- Up to 3 displays can be connected.
Possibility to create a mobile test lane concept consisting of:
- BM53000 mobile wheel play detector
- BM605 tacho tester
- Optional axle load simulation.
Optional transport solutions:
- Trailer solution.
- Inside 20′ container.
The BM20200 roller brake tester is approved by several international authorities and can optionally be supplied in compliance with ISO 21069.
Installation
- Can be installed both indoor and outdoor in most environments from -30°C to 60°C and humidity up to 95.
- Optional split bed installation over an inspection pit.
Technical Data
| ROLLER BED PER SIDE (1000 MM ROLLERS) LXWXH | 1474 x 1255 x 645 mm |
|---|---|
| ROLLER BED PER SIDE (1250 MM ROLLERS) LXWXH | 1474 x 1505 x 645 mm |
| ROLLER BED PER SIDE (1600 MM ROLLERS) LXWXH | 1474 x 1855 x 645 mm |
| ROLLER DIAMETER | 208 mm |
| ROLLER LENGTH | 1000 mm 1250 mm 1600 mm |
| FRICTION COEFFICIENT OF ROLLER FROM FACTORY DRY/WET | Min. 0.7/0.6 |
| WHEEL SPAN | 850 to 2850/3350/4050 mm |
| DISTANCE BETWEEN ROLLER CENTRES | 460 mm |
| MAXIMUM TEST AXLE WEIGHT | 16000 kg 20000 kg |
| HYDRAULIC LIFT | 12000 kg |
| GEAR MOTOR SIZE | 11 kW 15 kW |
| MAX. BRAKE FORCE MEASUREMENT | 4000 daN 6000 daN |
| TEST SPEED | 2.3 km/h |
| DISPLAY (LXWXH) | 930 x 820 x 100 mm |
| CONTROL BOX (LXWXH) | 760 x 600 x 210 mm |
| DISPLAY BRAKE FORCE SCALE | 0 – 800 daN 0 – 4000 daN |
| BRAKE FORCE MEASURING ACCURACY | 0 – 100 daN: +/-2 daN > 100 daN: +/-2% FS |
| PEDAL FORCE MEASURING ACCURACY | 0 – 100 daN: +/-1 daN |
| POWER AND FUSES | 3 x 400 Vac + N + PE, Min. 50/80 Amp 3 x 230 Vac + PE, Min. 80/125 Amp |
Applications
- Normal workshops performing repair of any light or heavy vehicle.
- Preferred model by vehicle inspection bodies, as it can be configured for very high throughput and handle continuous tests of full laden axles.
- Used by various authorities at motorway lay-by stations as part of enforcement schemes.
- Selected by some of the most prestigious vehicle inspection companies worldwide.
