BM305 Tacho Tester
The BM305 Tacho Tester is a strong tacho tester for testing of speed on light vehicles with an axle load up to 3500 kg.
Description
ADVANTAGES
Technical Data
installation
Description

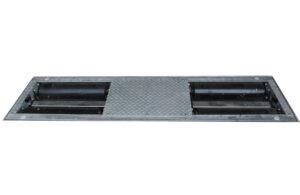

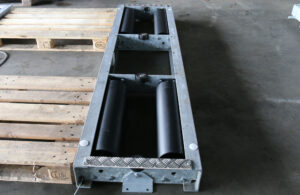

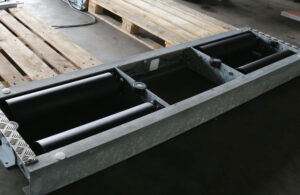

The BM305 tacho tester is a strong tester with 4 rollers.
The tacho tester features a range of options that allows for a customized configuration.
Options
- Robust and long lasting:
- All steel is of highest quality and hot galvanized.
- Can be supplied in a minimum configuration and still allows for later upgrade to all options.
- Prepared for test line expansion with roller brake tester, suspension tester and side slip tester.
- BM FlexCheck software:
- Advanced data collection, storing and presentation of test results.
- Data capture from a complete inspection lane.
- PDA/smartphone/tablet solution that allows the operator to control and monitor the test results directly on a handheld unit.
ADVANTAGES
The rollers are only 160 mm above floor level allowing for very short drive on/off ramps (only 185 cm on each side).
Technical Data
| Speedometer tester (LxWxH) | 2365 x 600 x 165 mm |
|---|---|
| Subframes (LxWxH) | 2456 x 965 x 173 mm |
| Roller diameter | 159 mm |
| Roller length | 650 mm 1000 mm |
| Wheel span | 800 to 2100 / 2800 mm |
| Maximum test axle weight | 3500 kg |
| Measuring range | 0 – 120 km/h |
| Power and fuses | 1 x 230 Vac + N + PE, Min. 6 Amp |
installation
- Can be installed in-ground using a hot galvanized subframe.
- Can be installed on-ground. Requires fixation of the roller bed(s) to the floor.
- Can easily be transported from site to site on a flatbed truck or trailer.
